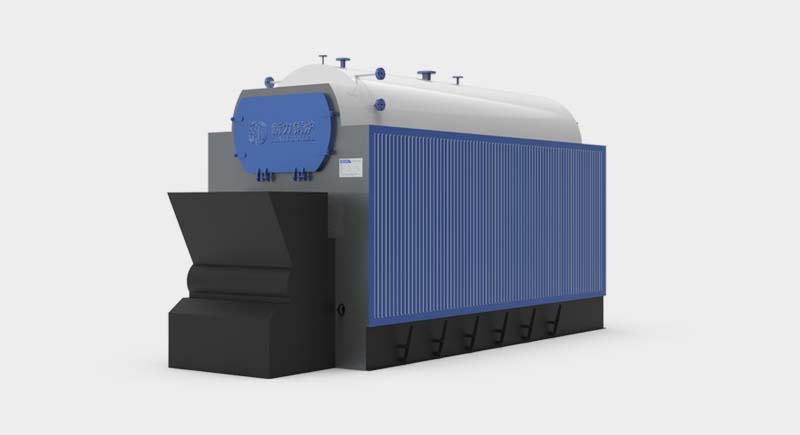

DZL Coal Fired Chain Grate Steam Boiler
DZL series coal fired boiler is single drum water tube and fire tube boiler, combustion equipment is chain grate. Water wall tubes at left and right sides of furnace are the radiated heating area. the two wings at furnace and screw fire tube in the drum are convection heating area. This boiler uses the upper drum, water wall tube and head are in symmetrical arrangement mode. The drum is welded assembly by cylinder and front back tube plate. This furnace structure in reasonable arrangement and high efficiency. This series boiler adopts several environmental protect measures (bag dust collector, double towers desulfurization, etc.) to meet the national emission requirement.
This boiler uses the new scientific achievement, such as arch tube plate, screw fire tube to solve the problem of tube plate flaw, water wall tube explosion, low efficiency, insufficient output, poor adaptability of coal, improve the heat transfer.
Rated Evaporation Capacity
Working Pressure
Thermal Efficiency
Avaliable Fuel
Performance Advantages
1. It uses arched tube plate and thread smokestacks constituted into the drum,the drum structure is quasi-elastic instead of quasi-rigid,abrogates the braced pieces of tube plate area, reduces the stress.The fire tube inside of tube plate is single return
2. The ascension pipes arranged at the bottom of drum,this make the sludge not easy to deposit,the high temperature zone of drum easy to be cooling,prevent the drum bottom swelling.
3. It adopts efficient heat transfer threaded pipe,strengthened heat transfer,then heating-up and pressure boost -up quickly, thus increasing the thermal efficiency.
4. Compact structure, smaller size compared with the same type, saving the boiler foundation cost.
5. Stable operation, easy to adjust, strong steam output.
6. Both wing wall and outlet widow inside of the furnace have the function of dust suppression,that make the original dust concentration controlled under the standard,thus ensuring the soot discharge scratch the index stipulated by the State Environmental
Technical Parameters
| Model | Rated Evaporation Capacity (t/h) | Rated Pressure(MPa) | Rated Steam Temperatrue(℃) | Inlet Water Temperature(℃) | Overall Dimension of biggest part for transfortation L*W*H（mm） | |
| DZL1-0.7/1.0/1.25-AII | 1 | 0.7/1.0/1.25 | 170/184/194 | 20 | 5100×2200×3000 | |
| DZL2-0.7/1.0/1.25- AII | 2 | 0.7/1.0/1.25 | 170/184/194 | 20 | 5500×2300×3300 | |
| DZL4-1.25/1.6- AII | 4 | 1.25/1.6 | 194/204 | 20 | 6600×2600×3600 | |
| DZL6-1.25/1.6- AII | 6 | 1.25/1.6 | 194/204 | 20 | 7500×2900×3800 | |
| DZL8-1.25/1.6- AII | 8 | 1.25/1.6 | 194/204 | 20 | 8100×3100×3800 | |
| DZL10-1.25/1.6- AII | 10 | 1.25/1.6 | 194/204 | 70 | 7700×3200×3600 | 8600×3000×2600 |
| DZL15-1.6/2.5- AII | 15 | 1.6/2.5 | 204/226 | 70 | 10000×3240×3540 | 12000×3200×30800 |
| DZL20-1.25/1.6- AII | 20 | 1.6/2.5 | 204/226 | 70 | 11000×3240×3540 | 14000×3200×30800 |
| Note: Parameter is for reference only, if any changes should follow the actual drawing | ||||||
